Pneumatic Actuating Gripper
Pneumatic Actuating Gripper

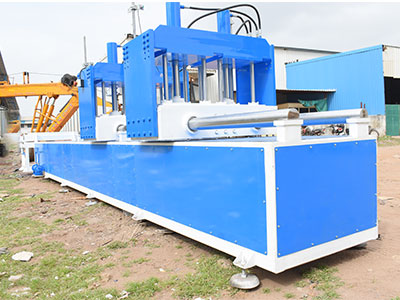

Pneumatic actuating gripper is used in Pultrusion machines for Gripping of shaped products. After the heater we put one griper which is operated by a pneumatic system. This whole system is mounted above the puller which hold out FRP profile and support to pilling system.Griper force can be very by customer requirement
In this gripping system we use twin Pneumatic cylinders for gripping system and air as medium to applied force. This air is coming from an air compressor which is attached with our machine. Air flow and its pressure is controlled by the air valve.
SPECIFICATIONS
|
Length |
6500 – 8000mm |
|
Width |
1000mm |
|
Height |
2000mm |
|
PULLING CAPACITY |
2000 kgf to 10000 kgf. [And More on Special Req.] |
|
PULLING SPEED |
0.04 Meter/Min. to 1.8 Meter/Min. |
|
DIE CLAMPING BED |
1000mm X 1100mm |
|
MOVING PULLER SIZE |
600 X 600 to 1000 X 650mm [2 Nos.] |
|
NO. OF GRIPPERS |
1, 2, 3 Nos. / Puller |
|
CARRIAGE MOVEMENT |
By Hydraulic Power. |
|
CLAMPING FORCE |
By Pneumatic Actuating System |
|
HEATING ZONE |
3 – 9 , Depending upon no. of Grippers |
|
ELECTRICAL POWER REQUIRED |
2.0 to 7.5 Kw for Hydraulic Power Pack Heating Requirement (Depending up on Size of mould) |
|
COMPRESSED AIR REQUIRED |
Approx- 10-12 CFM, & 5 -6 Kg/Cm² Pressure. |
|
COLLING WATER REQUIRED |
40 lpm @ 26 – 28 CËš [ form cooling tower ] |
