Butterfly Valve
Butterfly Valve

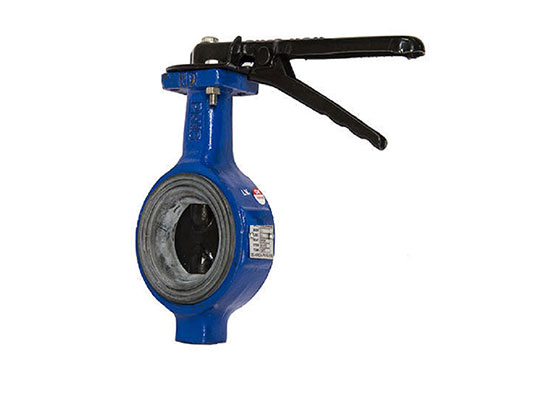

Manual Butterfly Valves is designed for Chilled & Hot Water to be used for Potable water and HVAC Applications. Manual Butterfly Valves comes with Handlever or Manual Gear Box to manually operate the valves.
- Wide Size range
- Operated by Lever or Gear Box.
- 90 deg opening/closing operation.
- Cast iron Body with powder coating.
- Epoxy Coated Ductile Iron disc.
- Wafer type Connection
SPECIFICATIONS
| Nominal pressure | PN16, PN25 |
| Medium Temperature | 10°C~ +110°C Maximum |
| Body MaterialIS | 210, FG 220 CI |
| Stem Material | ASTM A276, GR SS 410 |
| Disc Material | Epoxy Coated Ductile Iron Disc |
| Lever | CRCA SHEET |
| Leakage Rate | No visible leakage |
| Medium Type | Water |
| Flange standard | IS 1538 |
| Shell Test pressure | PN16-24bar/PN25-37.5 bar |
| Seal Test pressure | PN16-17.6bar/PN25-27.5 bar |
